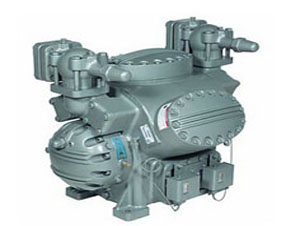

06E系列R22 R404A中溫半封閉活塞壓縮機

發布時間：2022-02-04人氣：110

型號	冷凝溫度	Q:冷量	蒸發溫度
型號	冷凝溫度	P:功率	-17	-15	-10	-5	0	5	7
06EM150	25	Q	29.25	32.22	40.41	49.82
	25	P	9.30	9.55	10.01	10.33
	30	Q	26.96	29.84	37.80	46.93	57.36	69.21	74.37
	30	P	9.80	10.14	10.84	11.33	11.60	11.65	11.60
	35	Q	24.60	27.40	35.12	43.96	54.06	65.53	70.53
	35	P	10.19	10.62	11.55	12.26	12.75	13.00	13.03
	40	Q	22.18	24.90	32.86	40.91	50.67	61.76	66.60
	40	P	10.43	10.97	12.15	13.11	13.82	14.29	14.41
	45	Q	19.71	22.33	29.54	37.79	47.20	57.89	62.56
	45	P	10.52	11.16	12.62	13.84	14.81	15.52	15.74
	50	Q	17.19	19.72	26.66	34.59	43.64	53.94	58.43
	50	P	10.42	11.19	12.94	14.44	15.68	16.66	16.98
	54	Q	15.14	17.59	24.31	31.99	40.74	50.71	55.60
	54	P	10.19	11.06	13.06	14.81	16.29	17.49	17.90
06EM175	25	Q	43.03	47.42	59.70	74.00
	25	P	13.97	14.43	15.36	15.94
	30	Q	39.77	43.98	55.74	69.46	85.34	103.57	111.57
	30	P	14.67	15.24	16.50	17.44	18.00	18.12	18.03
	35	Q	36.49	40.51	51.76	64.89	80.11	97.61	105.30
	35	P	15.21	15.91	17.50	18.80	19.74	20.28	20.36
	40	Q	33.20	37.03	47.75	60.29	74.84	91.61	98.98
	40	P	15.60	16.43	18.34	20.00	21.33	22.28	22.55
	45	Q	29.92	33.56	43.75	55.68	69.56	85.58	92.64
	45	P	15.81	16.77	19.02	21.03	22.76	24.13	24.57
	50	Q	26.68	30.12	39.76	51.08	64.28	79.54	86.28
	50	P	15.85	16.92	19.51	21.89	24.01	25.80	26.41
	54	Q	24.12	27.39	36.60	47.42	60.06	74.72	81.19
	54	P	15.74	16.91	19.77	22.44	24.87	27.00	27.76
06EM199	25	Q	56.67	62.12	77.32	94.99
	25	P	19.92	20.66	22.39	23.87
	30	Q	52.96	58.18	72.78	89.77	109.39	131.90	141.76
	30	P	20.85	21.72	23.80	25.66	27.24	28.47	28.86
	35	Q	49.20	54.21	68.19	84.48	103.32	124.95	134.45
	35	P	21.65	22.66	25.09	27.32	29.30	30.97	31.53
	40	Q	45.43	50.21	63.57	79.14	97.18	117.94	127.06
	40	P	22.3	23.45	26.23	28.84	32.23	33.33	34.08
	45	Q	41.66	46.2	58.92	73.78	91.01	110.88	119.61
	45	P	22.81	24.09	27.22	30.22	33.01	35.55	36.48
	50	Q	37.9	42.21	54.28	68.4	84.82	103.78	112.13
	50	P	23.14	24.55	28.05	31.43	34.64	37.61	38.72
	54	Q	34.92	39.03	50.58	64.1	79.86	98.09	106.13
	54	P	23.27	24.8	28.58	32.27	35.81	39.13	40.39

R404A
型號	冷凝溫度	Q:冷量	蒸發溫度
型號	冷凝溫度	P:功率	-17	-15	-10	-5	0	4
06EM450	25	Q	33.29	36.65	46.09	57.17
	25	P	9.99	10.04	11.28	11.92
	30	Q	30.37	33.55	42.43	52.83
	30	P	10.54	11.03	,12.13	13.03
	35	Q	27.53	30.51	38.82	48.53
	35	P	11.05	11.63	12.95	14.10
	40	Q	24.74	27.51	35.22	44.21
	40	P	11.44	12.10	13.65	15.06
	45	Q	21.95	24.51	31.60	39.86
	45	P	11.64	12.39	14.17	15.83
	50	Q	19.15	21.48	27.94	35.44
	50	P	11.58	12.41	14.42	16.33
	54	Q	16.87	19.02	24.95	31.84
	54	P	11.28	12.18	14.37	16.50
06EM475	25	Q	51.70	56.85	71.42	88.65	108.84	127.35
	25	P	15.56	16.19	17.63	18.84	19.73	20.18
	30	Q	47.34	52.17	65.80	81.88	107.30	118.01
	30	P	16.40	17.14	18.91	20.48	21.78	22.59
	35	Q	43.12	47.63	60.29	75.21	92.70	108.75
	35	P	17.05	17.90	19.97	21.88	23.57	24.71
	40	Q	39.00	43.17	54.86	68.60	84.71	99.51
	40	P	17.51	18.46	20.80	23.03	25.08	26.55
	45	Q	34.92	38.75	49.44	61.99	76.71	90.25
	45	P	17.77	18.81	21.39	23.92	26.31	28.08
	50	Q	30.84	34.32	44.00	55.34	58.65	80.91
	50	P	17.81	18.93	21.74	24.54	27.25	29.30
	54	Q	27.54	30.74	39.60	49.96	62.12	73.36
	54	P	17.68	18.85	21.83	24.83	27.78	30.05
06EM499	25	Q	79.88	84.96	98.03	113.53	131.55	152.44
	25	P	22.05	22.91	24.22	24.77	25.06	25.63
	30	Q	75.21	79.86	92.70	107.55	124.78	140.50
	30	P	23.68	24.58	26.08	26.87	27.50	28.23
	35	Q	69.77	74.23	86.50	100.63	116.99	131.92
	35	P	25.37	26.38	28.18	29.37	30.46	31.62
	40	Q	63.48	67.72	79.34	93.69	108.11	122.19
	40	P	26.8	27.97	30.21	31.92	33.61	35.31
	45	Q	56.25	60.26	7, 1.16	83.64	98.06	111.23
	45	P	27.65	29.02	31.84	34.2	36.62	38.96
	50	Q	48.03	51.76	61.87	73.42	86.76	98.96
	50	P	27.56	29.2	32.73	35.87	39.16	42.25
	54	Q	40.67	44.16	53.6	64.35	76.77	88.16
	54	P	26.61	28.5	32.69	36.56	40.63	44.4
